• The ultimate design of drum body tackles the densest of crops without problem.
• Not affected by dirt.
• Swath can be placed using swath formers.
• Changing from conditioner with wide-spread to swath formers takes just minutes.

• Low-slung design - trouble-free transfer from mower disc to conditioner.
• Inner drum bodies are smaller diameter for improved clearance.
• Heavy-duty inside body with large bearings.
• Outer mower drum is bolted to gear trough for straightforward removal.

EUROCAT with infinitely-variable cutting height adjustment system The height of all 4 drums can be adjusted simultaneously from above. The heavy-duty adjustment system is fully sealed in a metal housing encapsulated by a rubber boot.

• Smooth working and always easy to adjust.
• Easy access.
• Cutting height adjustable from 35 to 60 mm.
• High-cut saucers optional (20 mm extra cutting height).

• Shorter drying period in the field, less risk from the weather.
• Increasing energy content by up to 10% saves on concentrates.
• Better silage quality due to rapid reduction in PH-value
• No tedding (or less tedding) required, which saves time and simplifies the process.

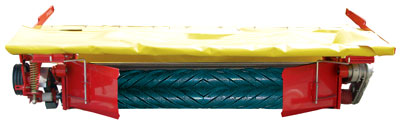

The profile of the new Pöttinger roller conditioner is spiral-shaped. The rollers intermesh to uniformly squash the stalks and produce a uniform blanket of forage. On Pöttinger conditioners both rollers are driven. The degree of conditioning can be adjusted by altering the spring-loading of the upper roller.

• The wide rotor ensures that even really large quantities pass through easily. Robust bearing assemblies on either side.
• Conditioned crop spread over the full width - thin layer, optimized degree of conditioning.
• V-shaped conditioner tines on all units mounted on Pöttinger mowersarranged in a spiral for a smooth flow of forage without torque peaks
• The steel tines are mounted in rubber bushes.
• Impact from foreign objects is absorbed and the crop is protected

IMPORTANT!


Steel fingers
with rubber dampers. The absorption characteristics of the rubber elements protect the conditioner and the forage.


Plastic fingers
on NOVACAT 225/265 ED for lower weight so that they can be operated using smaller tractors.

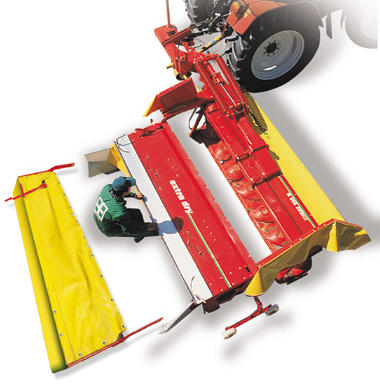

Remove on your own
Release coupling pins - remove v-belts - wheel the conditioner away.

 Rotor drive
l No additional angular gear unit required. l Power is transmitted direct from the cutter bar shaft to the rotor using drive belts.

• Better response on uneven ground for fast and tidy mowing
• Evenly spread load from inside to outside
• The outer skid of the cutter bar comes into contact with the ground before the inside one, for optimum protection of the stubble.

• "Floating cut"
• Protects stubble
• Light-weight, low drag, especially for slopes
• Low wear on skids
